Description

TM40 series offer multiple component configurations allowing them to be used for vacuum applications, medical device, beauty device,nasal aspirator, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and long lifetime, reliabler, highly efficient.

TM40A Micro diaphragm vacuum pumps can be mounted in any position and can deliver up to 17 l/min depending on the model and will operate against pressures of up to 250Kpa. vacuum -95kpa

Technical Details Features Applications Curve & Dimension Téléchargements

Pressure Pump (Item Number)	Vacuum Pump (Item Number)	Rated Voltage (VDC)	No-load Current (A)	Max Pressure (Kpa)	Max Vacuum (Kpa)	Max Flow (L/min)
TMD40A-F12-P22017	TMD40A-F12-V7517	12	1.8	250	/	17
	TMD40A-F12-V7517	12	1.8	/	75	17
	TMD40A-F12-V9512	12	1.8	/	95	12

• Valve Material Options: EPDM

• Diaphragm Material Options: EPDM

• Motor Type Options: BLDC motor

• Lifetime: 15000H

• Optional membrane/valve materials: EPDM for normal air;

PTFE for corrosive air, like acid, alkali air, ozone etc.

• Customized Support: 5V, PWM, FG,

Material: membrane / valve / pump head

Highest Performance/Size Ratio

● Innovative and efficient engineering designs enable the TM

Series to push the performance envelope in a lightweight, compact size.

Performs Quieter

● Optimized head, chamber, and flow path reduce noise without compromising performance.

Lasts Reliably Longer

● Using the advanced diaphragm elastomer and superior brushless motor

design sets the highest benchmark for service-free operation that exceeds 15,000 hours

High level of gas tightness

● Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head

Little vibration

● Because of leading edge technologies, top quality bearing, superior dc motor

Uncontaminated flow

● No contamination of the media due to oil-free operation

• Industrial Pressure & Vacuum Application
• Medical Device & Beauty｜ Medical Equipment
• Air Quality Sampling Monitors | Medical Atomizer | Nasal Aspirator
• Gas or Odor Leak Detectors | Cleaning Industry
• Laboratory Technology | Analytical Engineering

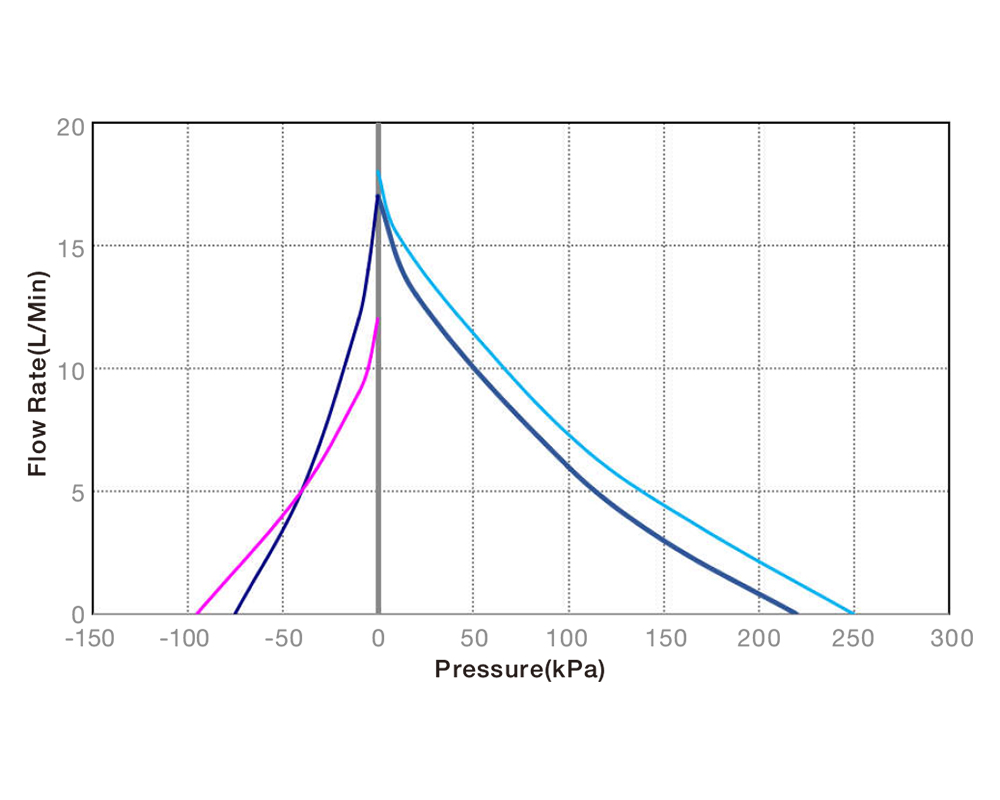

• Performance Curve

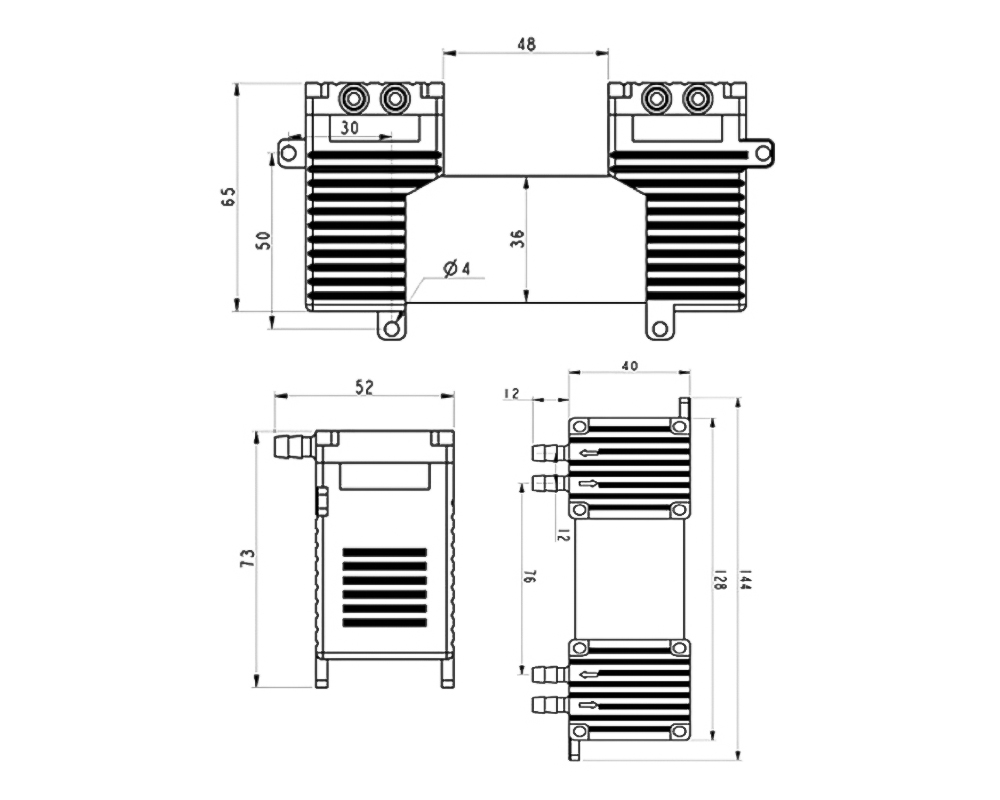

• Dimension(mm)
