Description

TM40 Micro Diaphragm Gas Pump series offer multiple component configurations allowing them to be used for vacuum applications, medical device, nasal aspirator, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient.

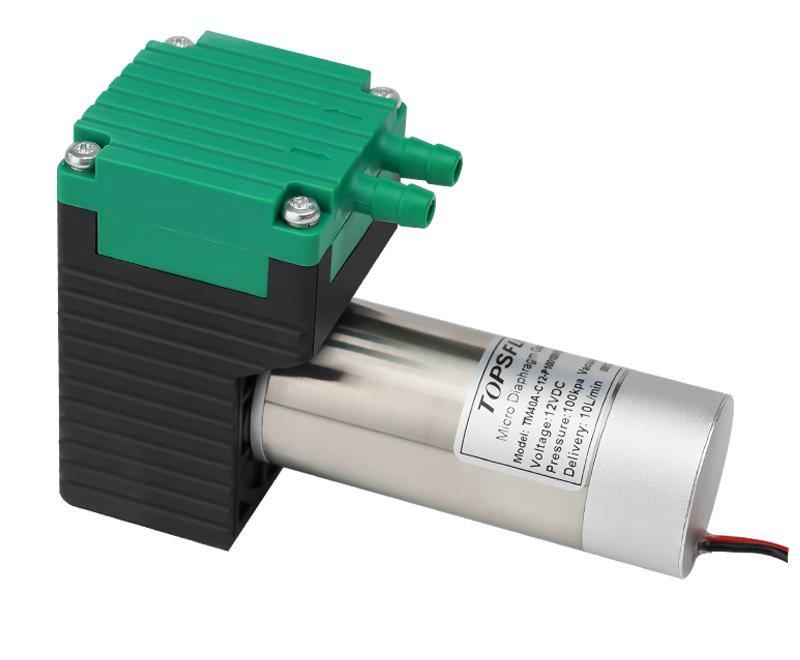

TM40A-B Micro diaphragm gas pumps can be mounted in any position and can deliver up to 16 l/min depending on the model and will operate against pressures of up to 280Kpa.

Technical Details Features Applications Curve & Dimension Téléchargements

Pressure Pump (Item Number)	Vacuum Pump (Item Number)	Rated Voltage (VDC)	No-load Current (A)	Max Pressure (Kpa)	Max Vacuum (Kpa)	Max Flow (L/min)
TM40-A12-B01-P25011	TM40-A12-B01-V8011	12	0.7	250	80	11
TM40-A12-B02-P28016	TM40-A12-B02-V8016	12	1.2	280	80	16

• Valve Material Options: EPDM

• Diaphragm Material Options: EPDM

• Motor Type Options: DC motor

• Lifetime: 1000H

• Optional membrane/valve materials: EPDM for normal air;

PTFE for corrosive air, like acid, alkali air, ozone etc.

• Customized Support: 5V, PWM, FG,

Material: membrane / valve / pump head

Highest Performance/Size Ratio

● Innovative and efficient engineering designs enable the TM

Series to push the performance envelope in a lightweight, compact size.

Performs Quieter

● Optimized head, chamber, and flow path reduce noise without compromising performance.

Lasts Reliably Longer

● Using the advanced diaphragm elastomer and superior DC motor

design sets the highest benchmark for long service-free operation.

High level of gas tightness

● Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head

Little vibration

● Because of leading edge technologies, top quality bearing, superior dc motor

Uncontaminated flow

● No contamination of the media due to oil-free operation

• Industrial Pressure & Vacuum Application
• Medical Device & Beauty｜ Medical Diagnostic Equipment
• Air Quality Sampling Monitors | Medical Atomizer | Nasal Aspirator
• Gas or Odor Leak Detectors | Cleaning Industry
• Laboratory Technology | Analytical Engineering

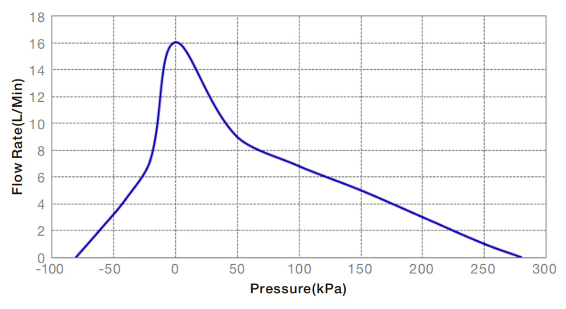

• Performance Curve

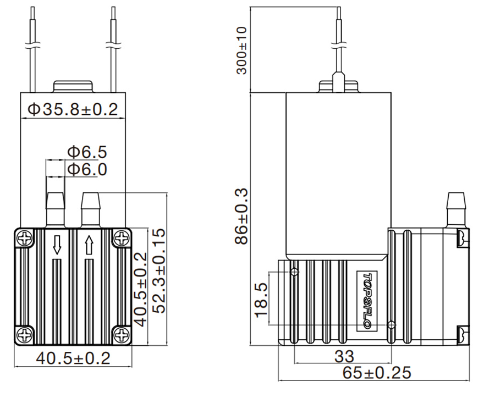

• Dimension(mm)
