DC Diaphragm Water Pumps

TF51-A

Flow Rate (max.): 3 l/min

Pressure (max.): 1 bar

Vacuum (max.): 0.4 bar

Description

The TF51 Series offers multiple component configurations allowing them to be used for either vacuum operation, liquid transfer, or alternating operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient.

TF 51 pumps can be mounted in any position and can deliver up to 3 l/min depending on the model and will operate against pressures of up to 10M

Détails techniques Caractéristiques Applications Courbe et dimension Téléchargements

Liquid Pump (Numéro de l'article)	Vacuum pump (Numéro de l'article)	Rated Voltage(VDC)	No-load Current(A)	Max Head(bar)	Max Vacuum(Kpa)	Max Flow (L/min)
TF51-A12-W0306	TF51-A12-V5006	12 / 24	1/0.65	≥1bar	40	water : 3 gas : 6

- Options de matériaux pour les vannes : EPDM	- Options de matériau de la membrane : EPDM
• Motor Type Options: DC motor	• Lifetime: 3000H
• Media: Ink, water, most liquids and gases	• Working Mode: Interrupt
- Matériaux de membrane/valve en option : EPDM pour l'air normal ; PTFE pour l'air corrosif, comme l'acide, l'air alcalin, l'ozone, etc.	- Support personnalisé : 5V, PWM, FG, Matériau : membrane / valve / tête de pompe

• Excellent reliability

• High performance-to-size ratio

• Contamination free transfer

• Maintenance-free

• Highly resistant to aggressive media

• Self-priming and excellent for pressure

• Can run dry,durable

• Little vibration,Low noise

• Small and powerful

Inkjet printer
Fireplace
Water purifier
Analytical instruments
Semi-conductors
Medical equipment
Lab equipment
Food & beverage industry
Cleaning industry

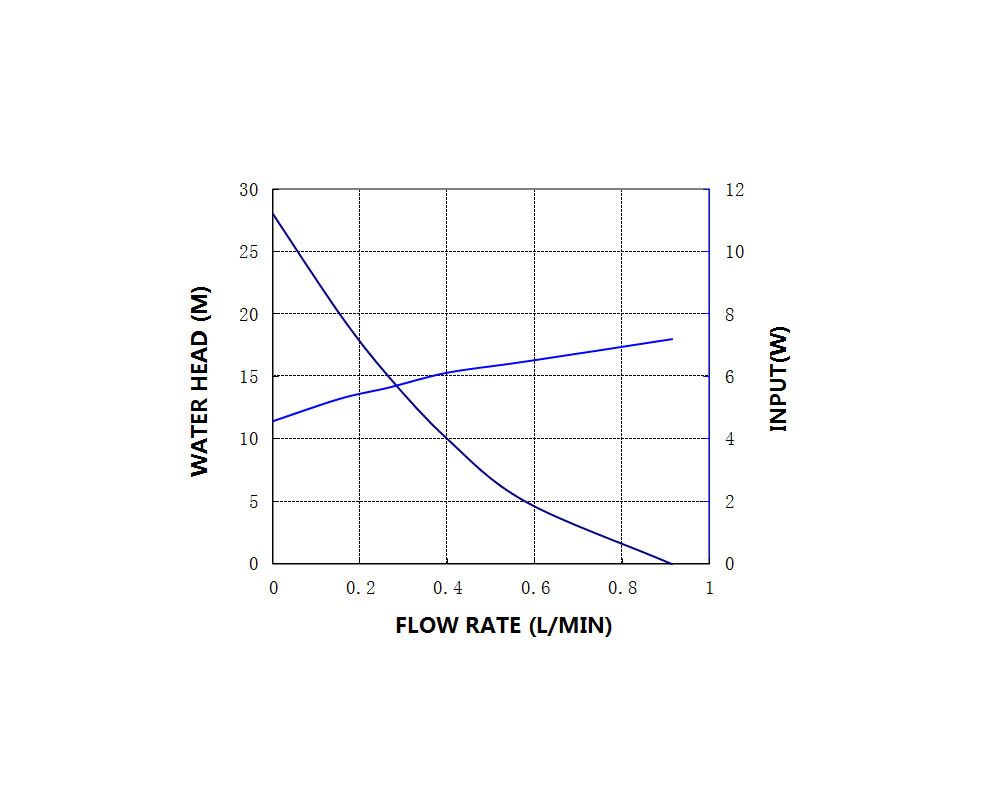

- Courbe de performance

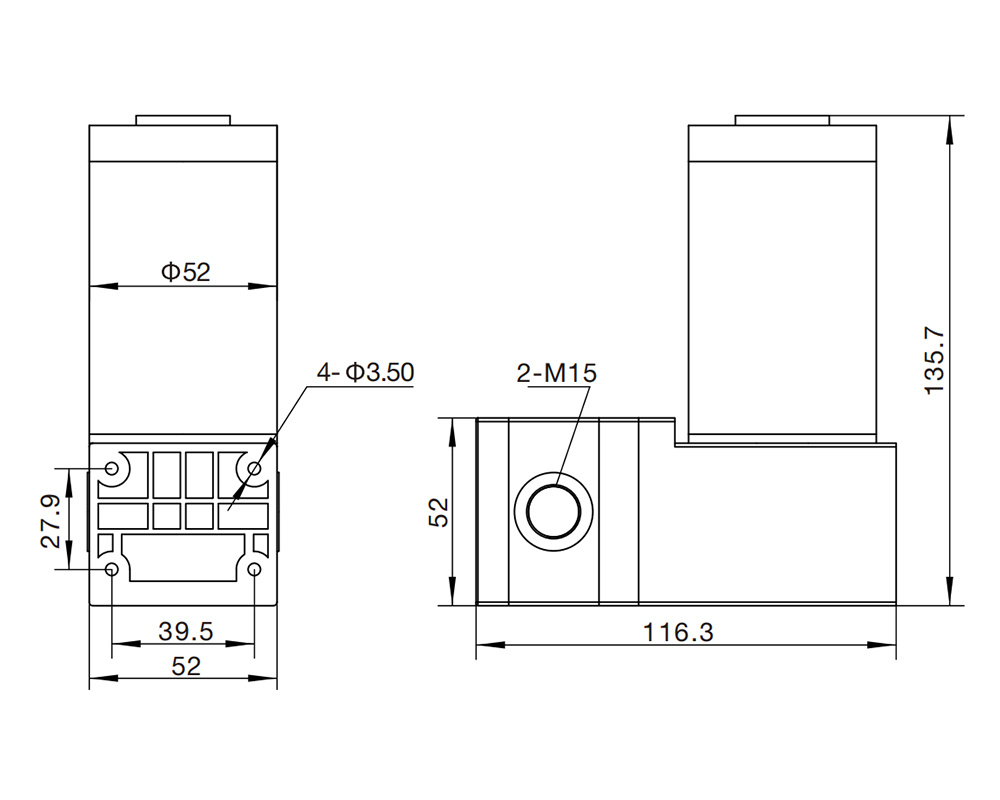

- Dimension (mm)
